Getting Started

• Take some simple measurements to determine the perimeter dimensions of your new fence. Feel free to share your measurements with us. We are happy to help, to ensure you get exactly what you need.

• Use graphing paper to sketch out your fence design on paper, as a visual aid.

• Calculate how many Standard Width (65”) fence panels, and 4x4 fence posts (3.5”) you’ll need to span the fence perimeter.

• If you need your fence to be a very specific total length (see Example Fence), then you will likely need at least one custom-width fence panel.

• If you are adding a gate panel into your fence design, we recommend that you allow for a slightly wider (+1”) opening than the panel itself. This way the gate hinges and latch can swing freely.

Installation

Disclaimer: Eden Fence Co. sells fence products. We do not offer fence installation services. We guarantee the quality of the products we sell, but we cannot guarantee the quality of any specific fence design or installation. We leave the fence building up to you.

If you need assistance installing your fence, please reach out to a friend, family member, or professional contractor. Every fence project is different, and every person has a different skill level. Please build at your own risk and take the proper safety precautions.

Materials

Set out your fence building materials and tools. Double check to make sure you have everything needed to get started.

Perimeter Layout

Use a measuring tape and string-line to accurately mark out the fence perimeter.

Post Hole Layout

Use a measuring tape and spray-paint to mark the exact location where you’ll dig the post holes. Pay special attention to ensure the spacing is accurate.

Dig Post Holes

Dig the post holes 18-24” deep and 12” in diameter. This will allow some wiggle-room later on, if needed. Remove all loose soil from the hole, and set it aside.

Set Corner Posts

Set your corner posts first. Ensure they are accurately spaced, level, and firmly installed into the ground.

Use a String-Line

Attach a string-line, flush (and tight) across the top of your corner posts, spanning the entire fence perimeter. This way, when you place each additional post, you can ensure that the post is at the correct height.

Using a string-line in this way, is especially helpful if the ground under your fence perimeter is uneven.

Check Measurements

Once all posts are set into their post holes, start from one of your corner posts, and double check to ensure that the posts are spaced correctly, level and lined up with the string-lines.

Pay special attention to any gate openings, to ensure that the gates will have proper clearance once installed.

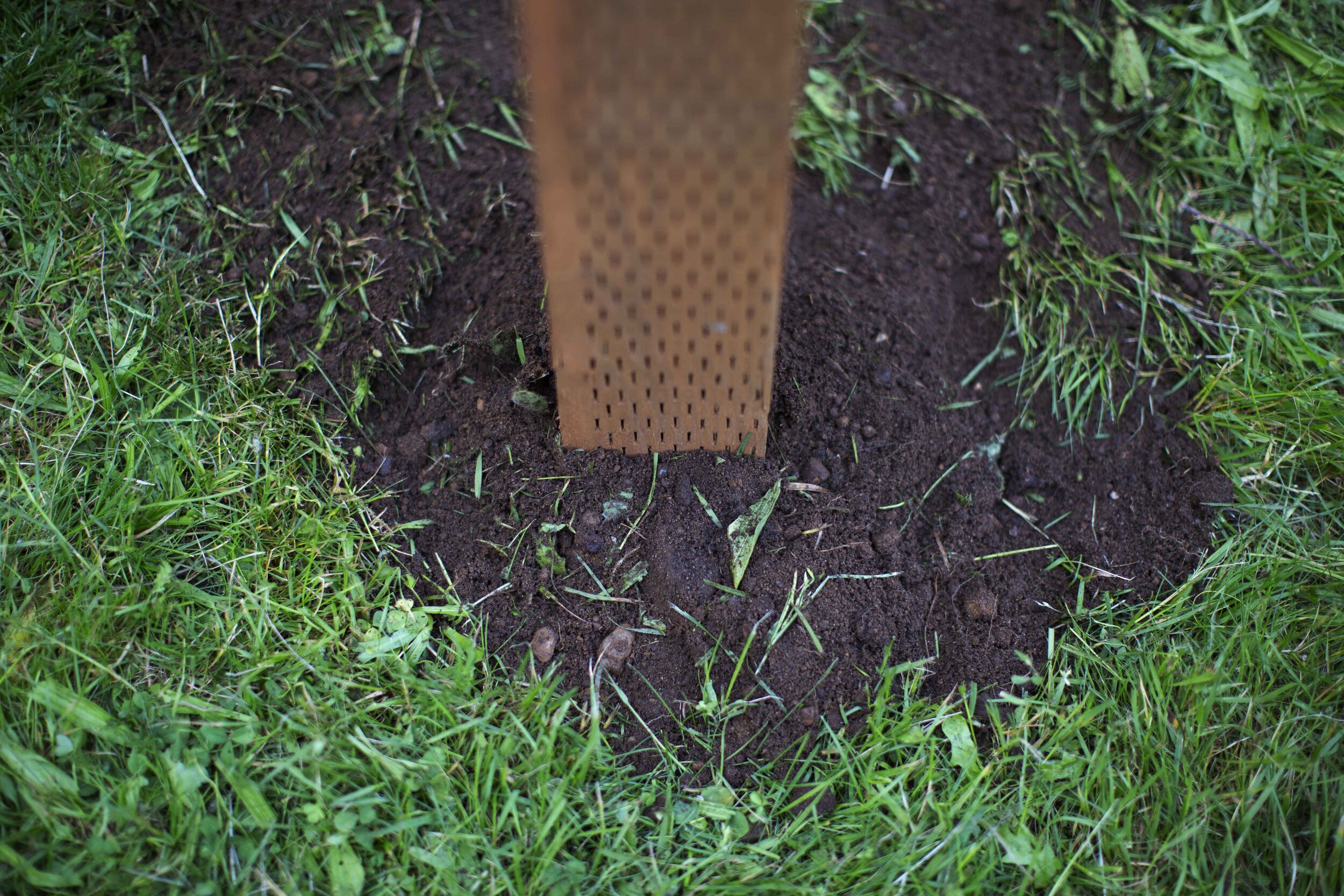

Add Soil

Lightly pack soil around each fence post, to help hold them in the correct position. Some customers prefer to use instant concrete around the fence posts.

Clamp Fence Panel

With help from a friend, lift your first fence panel into place, between two fence posts. We recommend placing panels closest to any gate openings first. Each fence panel should fit snugly between the posts. With the panel held in the correct place, you can use a clamping tool or vise to ensure the panel stays in place.

Attach Fence Panel

With the panel clamped (or held) in the correct position, it’s time to permanently mount the fence panel. Locate the pre-drilled mounting holes on the fence panel. We recommend any outdoor-rated screw with a length between 3-5 inches. Screw the panel into the posts. Do not over-tighten. (Repeat until all fence panels are installed).

Pack Posts

Firmly pack remaining soil or instant concrete around every fence post. Ensure that all posts are solidly embedded into the ground. Discard any leftover soil.

Position Gate(s)

With help from a friend, lift the gate panel in place, between the gate-opening posts. Use a piece of wood or a book as a spacer, (or anything roughly 1/2” thick) to create a 1/2” gap between the hinge-side of the gate panel and its post. With this spacer in place, clamp the hinge-side of the gate panel to the post, at both the top and bottom.

Attach the Gate(s)

Using the provided hardware, screw the gate hinges firmly into the post.

On the opposite side of the gate panel, mark where the the gate latch locking-bar touches the post. Carefully place the gate latch receptacle in-line with the locking bar, and screw it in, using the provided hardware.

Enjoy your Fence!

Step back and marvel at the beautiful fence you’ve just created!
